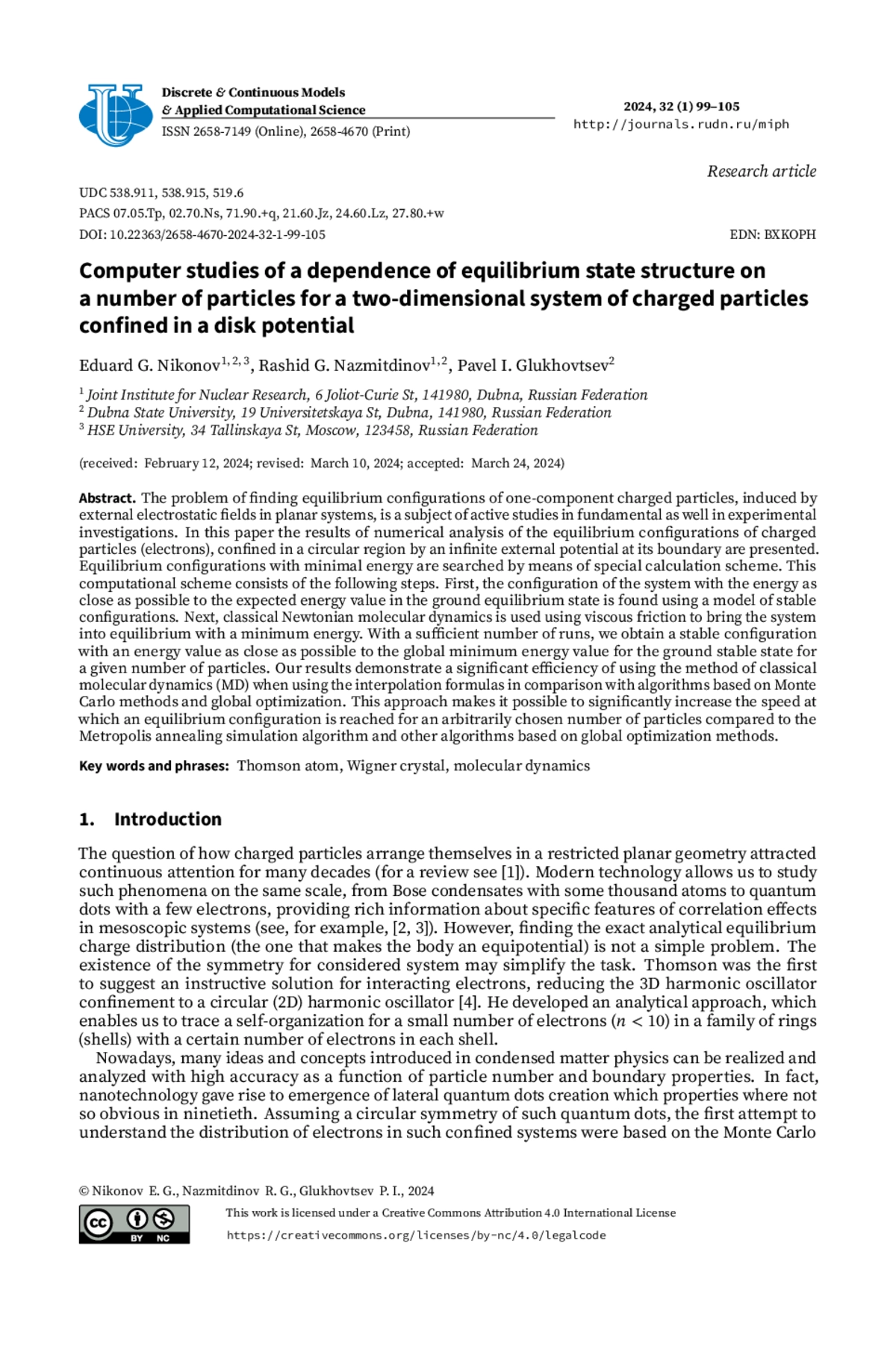

The problem of finding equilibrium configurations of one-component charged particles, induced by external electrostatic fields in planar systems, is a subject of active studies in fundamental as well in experimental investigations. In this paper the results of numerical analysis of the equilibrium configurations of charged particles (electrons), confined in a circular region by an infinite external potential at its boundary are presented. Equilibrium configurations with minimal energy are searched by means of special calculation scheme. This computational scheme consists of the following steps. First, the configuration of the system with the energy as close as possible to the expected energy value in the ground equilibrium state is found using a model of stable configurations. Next, classical Newtonian molecular dynamics is used using viscous friction to bring the system into equilibrium with a minimum energy. With a sufficient number of runs, we obtain a stable configuration with an energy value as close as possible to the global minimum energy value for the ground stable state for a given number of particles. Our results demonstrate a significant efficiency of using the method of classical molecular dynamics (MD) when using the interpolation formulas in comparison with algorithms based on Monte Carlo methods and global optimization. This approach makes it possible to significantly increase the speed at which an equilibrium configuration is reached for an arbitrarily chosen number of particles compared to the Metropolis annealing simulation algorithm and other algorithms based on global optimization methods.
Идентификаторы и классификаторы
The question of how charged particles arrange themselves in a restricted planar geometry attracted continuous attention for many decades (for a review see [1]). Modern technology allows us to study such phenomena on the same scale, from Bose condensates with some thousand atoms to quantum dots with a few electrons, providing rich information about specific features of correlation effects in mesoscopic systems (see, for example, [2, 3]). However, finding the exact analytical equilibrium charge distribution (the one that makes the body an equipotential) is not a simple problem. The existence of the symmetry for considered system may simplify the task. Thomson was the first to suggest an instructive solution for interacting electrons, reducing the 3D harmonic oscillator confinement to a circular (2D) harmonic oscillator [4]. He developed an analytical approach, which enables us to trace a self-organization for a small number of electrons (
Список литературы
1. Bowick, M. J. & Giomi, L. Two-dimensional matter: order, curvature and defects. Advances in Physics 58, 449–563. doi:10.1080/00018730903043166 (2009).
2. Saarikoski, H., Reimann, S. M., Harju, A. & Manninen, M. Vortices in quantum droplets: Analogies between boson and fermion systems. Rev. Mod. Phys. 82, 2785–2834. doi:10.1103/ RevModPhys.82.2785 (3 Sept. 2010).
3. Birman, J., Nazmitdinov, R. & Yukalov, V. Effects of symmetry breaking in finite quantum systems. Physics Reports 526, 1–91. doi:10.1016/j.physrep.2012.11.005 (2013).
4. Thomson, J. XXIV. On the structure of the atom: an investigation of the stability and periods ofoscillation of a number of corpuscles arranged at equal intervals around the circumference of a circle; with application of the results to the theory of atomic structure. Phil. Mag. 7, 237–265. doi:10.1080/14786440409463107 (39 1904).
5. Lozovik, Y. E. & Mandelshtam, V. A. Classical and quantum melting of a Coulomb cluster in a trap. Physics Letters A 165, 469–472. doi:10.1016/0375-9601(92)90349-Q (1992).
6. Bolton, F. & Rössler, U. Classical model of a Wigner crystal in a quantum dot. Superlattices and Microstructures 13, 139–146. doi:10.1006/spmi.1993.1026 (1993).
7. Bedanov, V. M. & Peeters, F. M. Ordering and phase transitions of charged particles in a classical finite two-dimensional system. Phys. Rev. B 49, 2667–2676. doi:10.1103/PhysRevB.49.2667 (4 Jan. 1994).
8. Cerkaski, M., Nazmitdinov, R. G. & Puente, A. Thomson rings in a disk. Phys. Rev. E 91, 032312. doi:10.1103/PhysRevE.91.032312 (2015).
9. Amore, P. Comment on “Thomson rings in a disk”. Phys. Rev. E 95, 026601. doi:10.1103/ PhysRevE.95.026601 (2 Feb. 2017).
10. Puente, A., Nazmitdinov, R. G., Cerkaski, M. & Pichugin, K. N. Reply to “Comment on ‘Thomson rings in a disk’ ”. Phys. Rev. E 95, 026602. doi:10.1103/PhysRevE.95.026602 (2 Feb. 2017).
11. Nazmitdinov, R. G., Puente, A., Cerkaski, M. & Pons, M. Self-organization of charged particles in circular geometry. Phys. Rev. E 95, 042603. doi:10.1103/PhysRevE.95.042603 (2017).
12. Ash, B., Chakrabarti, J. & Ghosal, A. Static and dynamic properties of two-dimensional Coulomb clusters. Phys. Rev. E 96, 042105. doi:10.1103/PhysRevE.96.042105 (4 Oct. 2017).
13. Jami, P., Ash, B. & Ghosal, A. Significance of the nature of disorder on the universal features of the spatio-temporal correlations of two-dimensional Coulomb-clusters. Eur. Phys. J. B 96, 45. doi:10.1140/epjb/s10051-023-00510-5 (4 2023).
14. Amore, P. & Zarate, U. Thomson problem in the disk. Phys. Rev. E 108, 055302. doi:10.1103/ PhysRevE.108.055302 (5 Nov. 2023).
15. Batle, J., Vlasiuk, O. & Ciftja, O. Correspondence between Electrostatics and Contact Mechanics with Further Results in Equilibrium Charge Distributions. Annalen der Physik, 2300269. doi:10. 1002/andp.202300269 (Nov. 2023).
16. Frenkel, D. & Smit, B. Understanding Molecular Simulation: From Algorithms to Applications 664 pp. (Academic, New York, 2001).
17. Nikonov, E. G., Nazmitdinov, R. G. & Glukhovtsev, P. I. Molecular dynamics studies of equilibrium configurations of equally charged particles in planar systems with circular symmetry. Computer research and modeling 14, 609–618. doi:10.20537/2076-7633-2022-14- 3-609-618 (2022).
18. Nikonov, E. G., Nazmitdinov, R. G. & Glukhovtsev, P. I. On the Equilibrium Configurations of Charged Ions in Planar Systems with Circular Symmetry. Journal of Surface Investigation: X-ray, Synchrotron and Neutron Techniques 17, 235–239. doi:10.1134/S1027451023010354 (2023).
